AutoPhi V19 QSFP28 BGA1536 KiCad design package
First to market

Publicly online since 2010 · U.S. patent applications since 2012 · inventions offered since 2014. The work of Christopher Gabriel Brown, independently documented.

First posted: · Last updated:
Downloads
Instant download

Downloads immediately on checkout — the CD GDSII Generator (AES-256 encrypted). Open with 7-Zip, WinRAR, or macOS Archive Utility using password CRIONE99KEY. Founder Access Pass credit (code FAP99CREDIT) applies at checkout.

A complete, manufacturing-ready KiCad 10 design package for a triple-QSFP28 100G optical interconnect card: a 1536-ball compute engine, three optical cages, and a PCIe 5.0 ×16 host link on a Megtron 6 controlled-impedance substrate.

QSFP28 100G PCIe 5.0 ×16 BGA-1536 compute Megtron 6 stackup 525+ 3D models

Overview

Triple QSFP28Three SFF-8665 cages — up to 300 Gbps aggregate optical I/O, wired to the compute fabric's SerDes lanes.
PCIe 5.0 ×1632 GT/s host link with on-board retimers placed at the card edge for clean, conditioned lanes.
BGA-1536 EngineA 95×90 mm, 1536-ball compute device exposing 16 transceiver quads.
Megtron 6 SubstrateLow-loss controlled-impedance stackup engineered for 32 GT/s; high-speed pairs on a dedicated inner layer.

Specifications

Form factorPCIe Gen 5 ×16 add-in card
Optical I/O3× QSFP28 (SFF-8665), up to 100G per cage — 300G aggregate
Host interfacePCIe 5.0 ×16 (32 GT/s) with on-board retimers
ComputeBGA-1536, 95×90 mm, 16 SerDes transceiver quads
MemoryDDR3 subsystem
SubstratePanasonic Megtron 6, controlled impedance, multilayer
ManagementMSP430 MCU · I²C bus · 4× NTC thermal sensors
Power≈75 W budget · USB-C input · hybrid battery option
Design toolKiCad 10 — full schematic + PCB + 3D

What's included

  • ✓  Complete KiCad 10 project (schematic + PCB)
  • ✓  Routed multilayer PCB on Megtron 6 stackup
  • ✓  525+ component 3D STEP models
  • ✓  Controlled-impedance net classes & design rules
  • ✓  Gerbers & drill files (fabrication-ready)
  • ✓  Bill of materials (BOM) + 3D render assets

AutoPhi™ V19 is an engineering development design by Christopher Gabriel Brown · CRI-ONE.COM. Specifications reflect the current design and are subject to change; figures describe interface capability and design intent.

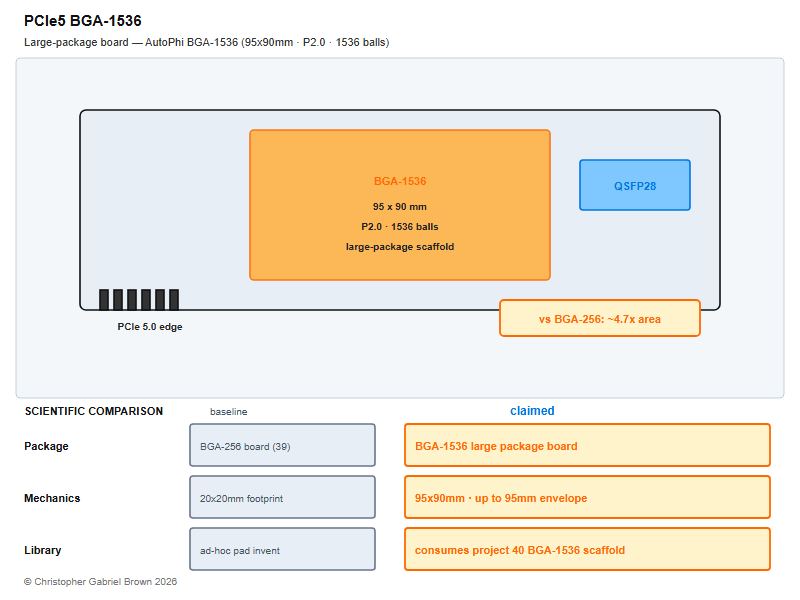

Full size PCIe5 BGA-1536
