APM08-D-QPHY — Quantum PHY link controller (3 nm, IFS 18A)

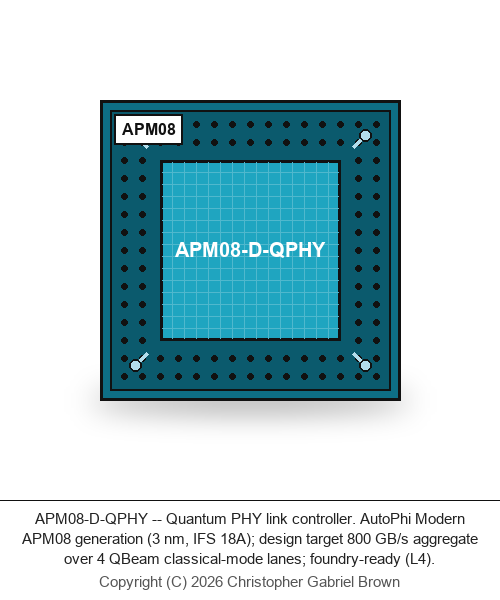

APM08-D-QPHY is generation 08 of the AutoPhi Modern APM-D-QPHY line — a variant of the APM01-D Nexus Core (Data Processing Unit) in which the baseline 2× 400 GbE MACs are replaced with 4× QBeam classical-mode PHY lanes and augmented with a PCIe 5.0 x16 endpoint plus per-lane AES-256-GCM. The die is fabricated at 3 nm on IFS 18A using IFS-18A-PDK-v1, following Path B (Synopsys DC + ICC II + Calibre). Design target: 800 GB/s aggregate, 1000x the APM01 baseline.

Drop-in mechanically compatible with the reference Quantum PHY HBA. Reference HBA ships APM07-D-QPHY by default; this SKU is offered for buyers who want a different point on the AutoPhi Modern generational fade.

Scientific basis

The QBeam physical layer (from the ExitPhi patent application, USPTO Application 19/722,805) has three carrier-agnostic properties that hold whether the modulated payload is quantum or classical: CoolBeam thermal integrity (-40 °C to +85 °C without active cooling), PipeBeam temporal alignment (±8 mil lane skew absorbed without retraining), and cable-free density (4 lanes on a single-slot HHHL bracket). This SKU exposes those three properties for classical byte transport at the 3 nm process node.

Specifications

Wire protocol (QPHY-P1)

APM08-D-QPHY runs the QPHY-P1 wire protocol as defined in the Quantum PHY package. QPHY-P1 frames a 32-bit routing header, a 16-byte payload prefix (opcode, virtual channel, sequence, transaction ID, length), a 64 B to 4 KiB payload body, and a 128-bit AES-256-GCM authentication tag. RS(255, 239) forward error correction is applied per lane. Credit-based flow control uses 64 credits per virtual channel across 8 virtual channels. Frames are striped across the four QBeam lanes at 8-byte granularity and PipeBeam-realigned at the receiver.

Nine Ultimate Technologies (AutoPhi Modern contract)

All nine Ultimate Technologies of the AutoPhi Modern family are present on this die: LED Power Recycling, Vertical Threading, Chiplet Stacking, Nanophotonic Data Flow, Quantum Error Correction, Electromagnetic Cooling, Quantum Battery Layers, Quantum-Classical Hybrid, and Neuromorphic AI Engine. The QPHY variant retains all nine and adds the classical-mode QBeam PHY lane replacement described above.

Foundry-ready deliverables (per this SKU)

• FOUNDRY_HANDOFF.md — 44-line canonical AutoPhi handoff for APM08-D-QPHY
• manifest.json — machine-readable per-SKU manifest
• STORE_LISTING.md — per-SKU store copy source
• store_description.html — per-SKU HTML for the live product page
• synth.sdc — 3 nm-specific synthesis constraint overlay (clock periods, drive strengths)
• floorplan.tcl — 7.25 mm die floorplan overlay
• pnr_config.tcl — IFS 18A place-and-route configuration overlay

Shared with the whole Quantum PHY package

• Full APM01-D-QPHY RTL (Verilog: qphy_top, qphy_pcie_ep, qphy_dma, qphy_mac, qphy_crypto, qphy_pipebeam, qphy_phy with classical-mode strap, qphy_doorbell)
• Baseline synthesis constraints (SDC), Yosys script, OpenLANE config
• Baseline floorplan and P&R configuration
• DV harness with unit + integration testbenches; make sim and make cov targets
• PCIe 5.0 x16 HHHL reference board: SPEC + BOM + STACKUP (12-layer FR-4 Tg170)
• Link-layer firmware in C + host daemon in Rust (qphyd)
• SDK: C header (libqphy) + Python bindings + Rust crate
• Wire protocol specification (QPHY-P1), host driver ABI, fabric topology catalog
• Deployment playbook for chassis / rack / row / facility scales
• FOUNDRY_STANDARDS matrix covering all 12 generations (foundry, PDK, EDA flow, cost model)

Compatibility

• Fits any AutoPhi Modern chassis slot that accepts a D-slot chip
• Bootstraps via the same Light-Trigger boot sequence as the baseline APM01-D
• Interoperates with sibling APM08-S / R / T / I / V / L / N / Q / E on the nanophotonic card-to-card link
• Reports as APM08-D-QPHY in the chassis discovery register

Foundry submission

Package is designated Foundry-ready (L4). Full RTL, synthesis constraints, floorplan, DV testbench, and the 44-line canonical FOUNDRY_HANDOFF are on file. Physical-design flow output present. Buyer signs the full-mask contract (Path B) directly with the foundry. Cost model in the FOUNDRY_STANDARDS document ranges from ~ NRE (sky130 MPW) through ~ NRE (IFS 14A full mask); this SKU's target flow is Path B (Synopsys DC + ICC II + Calibre).

US export & compliance

Configurations at 5 nm and below are subject to US EAR / BIS export controls. Buyer is responsible for compliance. Handled under standard DFARS trusted-foundry framework via IFS. America-First restriction: US-only sale; foundry outside USA requires written inventor consent case-by-case.

What this purchase conveys

Documentation and commercialization rights — not intellectual property. The QBeam patent (via ExitPhi, USPTO Application No. 19/722,805) and all underlying IP remain the sole and exclusive property of Christopher Gabriel Brown. This is not a patent license or assignment.

Terms

USD per die at inventor-set list, before the buyer's foundry cost. Included at no extra charge inside All In One . Available only to companies incorporated, headquartered, and primarily operating in the United States. USD only. Patents and underlying IP retained by the inventor. Final sale. Governing law: State of Georgia, USA.

Christopher Gabriel Brown — crioneaka@outlook.com · crioneaka@outlook.com. Communication by phone (+1 770-776-7023), email, or postal mail — no brokers, no intermediaries.

APM08-D-QPHY. Generation 08. 3 nm. IFS 18A. Foundry-ready.
