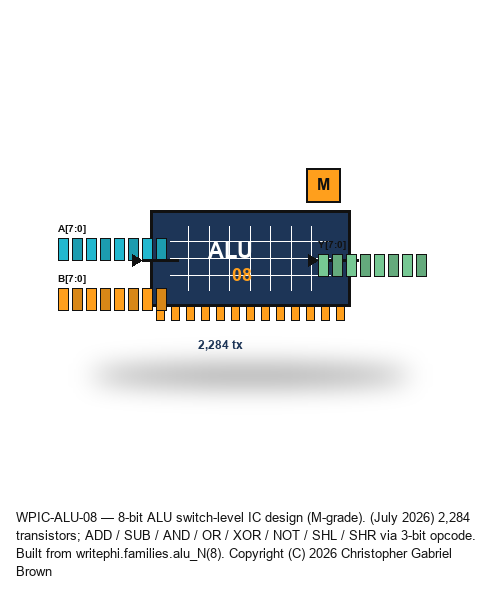

8-bit ALU single-layer IC design, 2,284 FETs, 192/192 assertions passed, instant download.
First to market

Publicly online since 2010 · U.S. patent applications since 2012 · inventions offered since 2014. The work of Christopher Gabriel Brown, independently documented.

First posted:
Links

WPIC-ALU-08 — 8-bit ALU IC Design

One switch-level-verified single-layer IC design deliverable, ready for study, replication, or downstream fab-preparation by the buyer.

Verification

  • 2,284 transistors in the compiled design
  • 192 / 192 assertions pass under the WritePhi switch-level CMOS simulator
  • Coverage: AND / OR / XOR bitwise operations across 8 boundary-case operand pairs
  • Verification-gated compile: the pipeline refuses to emit .wpprog if any assertion fails (per USPTO 19/731,098)

What ships

  • design.py — the ALU as a WritePhi Design object (Python source)
  • design.wpprog — compiled write-program byte-stream, .wpprog v2 format
  • writephi_sdk/ — reference SDK to recompile from source or verify hashes
  • README.md — scope, verification, No IP conveyed statement

Instant download on checkout. 84 KB zip.

What this is NOT

This is a single-layer switch-level design artifact, not a multi-layer silicon chip. No fab, no mask set, no tape-out, no certification. Buyer receives the design file; buyer is responsible for anything downstream.

No IP conveyed

No intellectual property is conveyed. Ever. All patents, patent applications, copyrights, trade secrets, know-how, and other IP retained in full by the inventor. This purchase delivers the design artifact only. No patent license, no use license, no sublicense, no right to build, no right to fabricate, no right to sell.

Terms

  • $9,997 USD
  • USA only
  • Instant download on checkout
  • All IP retained by inventor

Related filing: Verification pipeline covered by USPTO utility application 19/731,098 (filed 2026-07-05, Confirmation 5973, Patent Center 78285110). This SKU delivers one design artifact produced by that pipeline; the pipeline itself is not conveyed.
