QPHY PCIe Card — cable-free QBeam endpoint (project 77)
PCIe 5.0 x16 HHHL card that hosts a QBeam-enabled chip on-board. Zero bracket cables — the chip's package-top phased-array antenna handles chip-to-chip wirelessly (per USPTO 19/722,805), while PCIe fingers carry only host↔chip traffic. Companion to the cabled Quantum PHY line.
© CRI-ONE. All rights reserved. Patents issued and pending. Unauthorized reproduction of the underlying designs is prohibited.
Extended catalog & full narrative — QPHY PCIe Card — cable-free QBeam endpoint (project 77)
The extended dossier appended from the 2026-08-05 catalog snapshot. Prices in the body copy have been stripped; the live-store price on this page is the authoritative figure. Images have been omitted.
QPHY PCIe Card
Foundry-ready (L4)

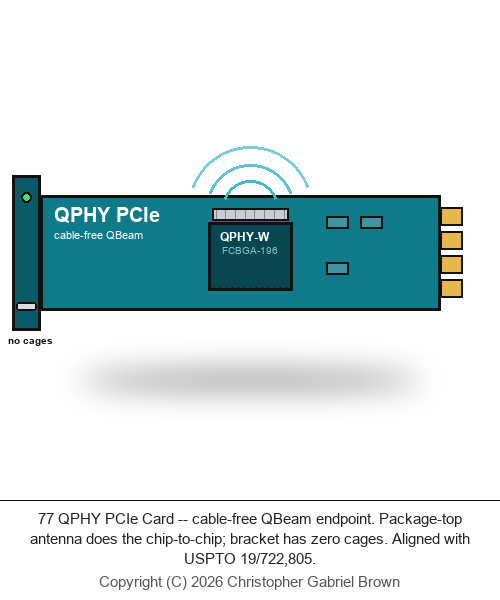

Every rack of AutoPhi accelerators — and every rack of anyone else's accelerators — still bristles with QSFP-DD, InfiniBand, PCIe-over-copper, and optical cages. The one thing the ExitPhi patent already invented — a chip where the package-top metal is simultaneously an RF phased-array antenna and a thermoelectric cooling cold-side — has never shipped as a mainstream PCIe form factor. Until now. QPHY PCIe Card hosts a QBeam-enabled chip on a standard PCIe 5.0 x16 HHHL bracket. Chip-to-chip goes wirelessly through the package-top antenna. The bracket has no cages, no cables — only a status LED and a service-only USB-C port. PCIe fingers carry only host↔chip traffic.
- PCIe 5.0 x16 · Host interface (63 GB/s per direction)
- 0 · Cables on the bracket
- FCBGA-196 · Package top = antenna + cooling (per patent §G)
- 75 W · Slot-only, no external power connector
- APM07-D-QPHY-W · Reference silicon (any APM04..APM12 W-variant drops in)
- App# 19/722,805 · Filed QBeam IP dependency
What it is
A PCIe 5.0 x16 HHHL add-in card that hosts a QBeam-enabled chip. Faithful to the ExitPhi patent (USPTO App# 19/722,805): the chip's FCBGA package-top metallic structure is simultaneously the RF phased-array antenna for chip-to-chip data AND the cold-side terminal array of a vertical thermoelectric cooling pump. Chip-to-chip data is wireless — no data cables anywhere. Sits in any standard PCIe 5.0 slot.
How this card differs from the Quantum PHY line (project 76)
| Quantum PHY line (13 SKUs) | QPHY PCIe Card (this) | |
|---|---|---|
| Bracket | 4× SFF-8674 QBeam cages | No cages, no cables |
| Chip-to-chip | Copper diff pairs via cable | Wireless via package-top antenna |
| Package top | Passive heatsink | Active phased-array antenna + thermoelectric cold-side (per patent) |
| Aligned with USPTO 19/722,805 | Cabled framing | Patent-canonical wireless form |
| Silicon package | FCBGA-1024 | FCBGA-196 per patent §G |
| Price | umbrella / – silicon | per card |
Both product families are supported. Some buyers want a wired topology (project 76); some want the patent-faithful wireless form (this project). Choose whichever fits your rack.
What the buyer receives
- Card-level SPEC + BOM + 12-layer STACKUP (drafted for one-pass KiCad capture by a CM)
- Reference silicon spec (APM07-D-QPHY-W = APM07-D-QPHY die + FCBGA-196 antenna package per patent §G)
- By reference: project 76's host driver ABI, C/Python/Rust SDK, wire-protocol framing, fabric topology catalog
- By reference: full ExitPhi patent text (project 54)
- Deployment playbook (chip-to-chip line-of-sight, rack layout)
- Worldwide commercialization rights
Maturity
Foundry-ready (L4). SPEC + BOM + STACKUP on file. Physical-design flow output present. QBeam is a filed non-provisional USPTO utility patent. What is not yet in hand: KiCad schematic capture (CM scope), PCB layout (CM scope), prototype fab, PCIe 5.0 compliance, FCC / ETSI RF-emissions compliance, QPHY-W silicon tape-out. Performance figures are design targets from the ExitPhi patent record.
Terms and contact
USD per card. Included at no extra charge inside All In One . Available only to companies incorporated, headquartered, and primarily operating in the United States. USD only. Patents and underlying IP retained by the inventor.
Christopher Gabriel Brown — crioneaka@outlook.com · crioneaka@outlook.com
Communication by phone (+1 770-776-7023), email, or postal mail.
QPHY PCIe Card. Zero cables on the bracket. The QBeam antenna is on the package top, where the patent puts it.
