Negative Microwave
The cold side of every high-energy-density application is, by the 2020s, the bottleneck that determines the application’s economics. Data centres are limited by cooling, not by power supply. Concentrator photovoltaics are limited by cell cooling, not by mirror efficiency. Quantum-compute installations are limited by dilution-refrigeration throughput, not by qubit fidelity. Modern directed-energy systems are limited by thermal management of the gain medium, not by raw beam power. The list is long and growing.

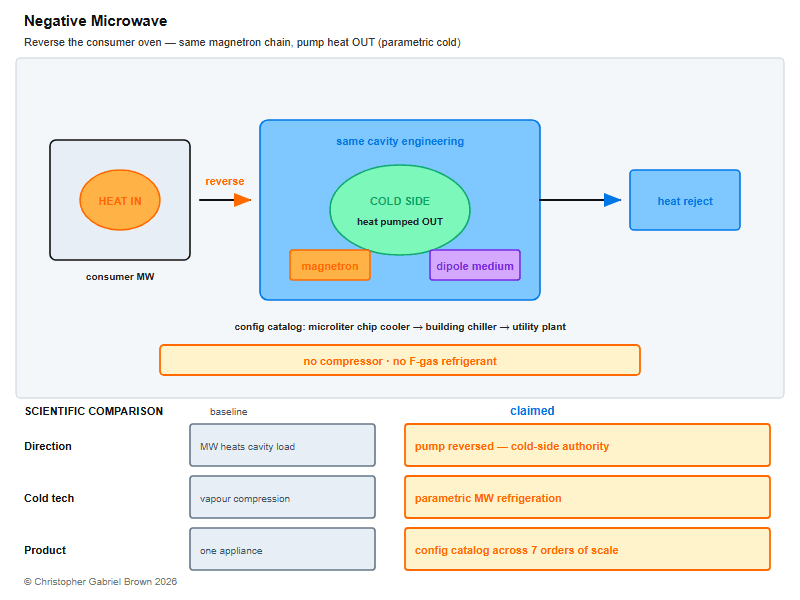

Negative Microwave operationalises a single observation from the inventor’s 2017 publication: the consumer microwave oven, run in reverse, is a refrigerator. The same cavity engineering, the same magnetron supply chain, the same dielectric materials. Energy flow reversed, parametric process driven in the cold-side direction, working medium engineered for the application. The result is a complete product family spanning seven orders of magnitude of cold-side authority — from one watt at the chip-embedded scale to fifty megawatts at the utility-plant scale — across temperature windows from sub-Kelvin to four hundred Kelvin, using components substantially drawn from supply chains that already exist at consumer-price-point cost-of-goods.
The Configuration Catalog
Forty-two named configurations across seven application domains:
| Domain | Configurations | Authority window |
|---|---|---|
| Quantum & cryogenic | 6 (NM-Q-04mK through NM-Q-80K) | 10 mW @ 40 mK → 100 W @ 80 K |
| Data centre & compute | 5 (chip-direct, rack, immersion, aisle, data-hall) | 300 W → 1 MW |
| Building HVAC | 5 (small → utility) | 30 kW → 50 MW |
| Industrial process | 5 (chemical, metallurgical, food, pharma, semicon) | 50 kW → 2 MW |
| Aerospace & defence | 5 (DEW, satellite, deep-space, aircraft, vehicle) | 10 W → 50 kW |
| Medical & biological | 5 (MRI, vaccine, cryo, PCR, implantable) | 50 mW → 500 W |
| Speciality & research | 6 (lab, concentrator-PV, fusion, photo-PV building, archive, custom) | 5 kW → 90 kW combined |
What Is Conveyed at the Full-Acquisition Tier
- Assignment of US non-provisional utility patent application 19/707,287, including the right to file continuations, continuations-in-part, and divisionals.
- Worldwide commercialisation rights across all forty-two configurations and all seven application domains.
- The complete documentation package: BOOK (engineering & patent history), CONFIGURATIONS (the catalog), ENGINEERING (parameter equations, working-medium tables, dielectric compatibility matrix), PRIOR_ART (verified prior-art landscape with citations to US 5,715,690 / 4,880,954 / 6,281,746 / 3,548,199 / 9,574,801 / 4,757,688 / 4,332,135 / 5,091,361 and adjacent EP/WO publications), SAFETY_BULLETIN (CRI-ONE-SB-49-001), PLAYBOOK (outreach + qualification), and VALUATION (commercial terms).
- The prior-art binder and prosecution file for application 19/707,287.
- The right to file foreign equivalents under the Patent Cooperation Treaty until 13 June 2027.
- Reservation of the right of Christopher Gabriel Brown to be named as inventor of record on all assigned applications and continuations.
Commercial Terms
America First. Available only to companies incorporated, headquartered, and primarily operating in the United States. USD only. No exceptions.
Acquiring entities. Up to four jointly and severally liable US-incorporated buyers, approved in advance.
Payment structures. One-time; installments (monthly or quarterly, up to 60 months); milestone-based; or strategic acquisition as part of a broader portfolio transaction.
Final sale. All payments are final, non-refundable, and non-recoverable.
Governing law. State of Georgia (venue: Gwinnett County). No oral modifications.
Tier-by-tier pricing for Proof of Function, Tech Validation, and Evaluation Licence is available on request. Individual configurations may be acquired separately at per-configuration tier prices.
Fixed. Not negotiated. Communication by email and postal mail only — no phone calls, no brokers, no intermediaries.
Provenance. Anchored to the inventor’s 2017 publication Invent Depositions (ISBN 9781979767897), entry #3554, first shipped 24 November 2017. United States Patent and Trademark Office Non-Provisional Utility Application No. 19/707,287, filed 13 June 2026, establishes constructive reduction to practice and priority. Patent-pending. Design targets only, not warranted performance. Closed-loop refrigeration framing, not self-recharging or perpetual-motion claim. First to market — documented public offering, not a determination of patent priority.
Contact. Christopher Gabriel Brown · Inventor of Record
1341 Wellington Cove, Lawrenceville, Georgia 30043-5255, USA
