AutoPhi QBeam2: an invoke frame beams from the QBeam transfer card to the PhantasmPhi IC and the answer beams back, animated picture

Asset valuation: $9,000,000,000. Project 76 · Author: Christopher Gabriel Brown · 2026-07-30 This file is LOCAL and not for external distribution. Earlier revisions of this file mapped QBeam terminology onto entries 989–995 in the master IP catalog 1 light trigger.txt. That mapping was incorrect. T

For the curious

Think of two accelerator boards in a rack as neighbors passing notes through a slot in the wall. The QBeam Transfer Card is that slot. It is a PCIe 5.0 x16 half-height, half-length host bus adapter with four QBeam ports; it presents the patented QBeam send-and-receive layer to the host as a plain byte-oriented classical fabric: the host reads and writes bytes; no qubits ride the wire, nothing is teleported. Design targets: four hundred gigabytes a second bidirectional, four hundred nanoseconds doorbell to DMA, link-layer encryption, passive heatsink. Twelve silicon configurations run from seven nanometers to two.

Beside it sits the PhantasmPhi Series: ghost-math chips fusing three lineages, the Color Mathematics ALU as the only datapath, the QBeam frame port as the only I/O, and the Project 82 alchemy math series in ROM. A function lies dormant until an invoke frame arrives; the answer materializes and beams back. Six editions, six generational fades, and a sixty-four-engine QuettaPhantom flagship.

It is for datacenter operators and engineering buyers headed to a foundry. The card is foundry-ready: full RTL, synthesis constraints, floorplan, testbench, foundry handoff, board reference spec, bill of materials and stackup, firmware and SDK. PhantasmPhi arrives as a SKY130-hardened netlist, proof battery twelve of twelve, LVS clear, zero DRC, timing closed at all nine corners, a hundred and fifty microwatts. Prior-art search queries for the buyer's counsel are included. The ExitPhi utility application defining QBeam, CoolBeam and PipeBeam is on file at the USPTO with thirty claims; that IP stays with the inventor.

Details

Description

83-autophi-qbeam2 — PhantasmPhi Series + Quantum PHY QBeam Transfer Card (AutoPhi Modern 01 Platform)

Inventor: Christopher Gabriel Brown

Portfolio: cri-one.com — Projects 76 & 83 (unified delivery)

Priority date: 2017-11-24 (Invent Depositions, ISBN 978-1-979767-89-7)

Filed IP dependency: ExitPhi — USPTO Application 19/722,805, filed 2026-06-27 4:14:28 PM ET, Confirmation #4017, Patent Center #77974071, non-provisional utility, pro se. Title: “Integrated Wireless Datacenter Fabric with Phased-Array Cooling Antenna, Order-Preserving Antenna Series, and Quantum-Teleportation Protocol atop a Shared Classical Channel.” 30 claims. Defines QBeam, CoolBeam, and PipeBeam.

Prior-art scan queries for buyer’s counsel: google_patents_search_list.txt (Clusters A–G, 11 categories, 60+ queries for Google Patents and USPTO Patent Public Search)

Status:

Project 76 (Quantum PHY): Foundry-ready (L4). Full APM01-D-QPHY RTL, synthesis constraints, floorplan, DV testbench, per-generation FOUNDRY_HANDOFF, HBA reference SPEC + BOM + STACKUP, firmware, and SDK all on file.
Project 83 (PhantasmPhi): SKY130-hardened netlist (L3-lite). RTL complete, Proof battery 12/12 PASS, SKY130 technology mapping (40,514 mapped cells), OpenLane2 full P&R completed 2026-08-22 00:29 UTC — fabrication GDS 102,054,112 bytes, SHA-256 D61C07EB...D3264697 . LVS clear, DRC 0, timing closed all nine corners, 150 μW.

Overview

Product 83-autophi-qbeam2 is a unified engineering package delivering two tightly coupled product families on the AutoPhi Modern 01 platform:

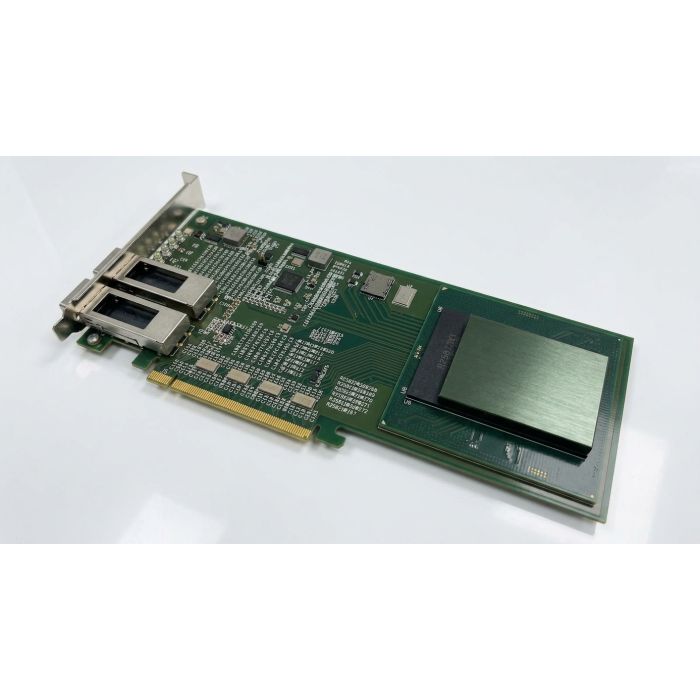

Quantum PHY QBeam Transfer Card (Project 76) — a PCIe 5.0 x16 half-height half-length (HHHL) host bus adapter that presents the patented QBeam physical layer as a plain byte-oriented classical fabric between AutoPhi accelerator boards. No qubits on the wire. No teleportation. 400 GB/s bidirectional aggregate, 400 ns cut-through latency (design targets). 12 silicon configurations (APM01-D-QPHY through APM12-D-QPHY) spanning 7 nm to 2 nm across four foundry nodes.
PhantasmPhi Series (Project 83) — a family of ghost-math ICs that fuse three lineages: the AutoPhi seed Color Mathematics ALU (sole datapath), the Project 76 QBeam classical frame port (sole I/O), and the Project 82 alchemy calculator math series resident in ROM. Functions lie dormant until a QBeam invoke frame arrives; the answer materializes and beams back. Six editions (PHM01-MED, PHM01-NRG, PHM01-C, PHM01-OMNI, PHM01-FORT, PHM01-INV), six generational fades (PHM01 through PHM06), and a flagship 64-engine QuettaPhantom (PHM-Q1).

Both families share the AutoPhi Modern 01 RTL shared module library (10 Verilog modules under rtl/common/ ), the OSS CAD Suite EDA toolchain, the OpenLane2 physical-design flow, and the GDSII Generator standalone tool.

Quantum PHY QBeam Transfer Card — Hardware Specifications

Parameter Specification

Form factor PCIe 5.0 x16 HHHL, single-slot bracket, per PCI-SIG CEM 5.0

Card outline 167.65 mm x 68.90 mm

Silicon 1x APM07-D-QPHY (mid-gen shipping variant), FCBGA-1024, 35 x 35 mm, IFS 18A (3 nm). Any APM04..APM12 drops in mechanically compatible.

Host interface PCIe 5.0 x16, 63 GB/s each direction, SR-IOV (64 VF)

Fabric interface 4x QBeam ports on bracket (SFF-8674 cages)

Aggregate rate (target) 400 GB/s bidirectional (4 lanes x 100 GB/s per lane)

Cut-through latency (target) 400 ns doorbell-to-DMA

Encryption AES-256-GCM at link-layer, stateless, per-fabric key provisioned out-of-band

FEC Reed-Solomon RS(255, 239) per lane (corrects up to 8 symbol errors)

Flow control Credit-based, 64 credits per VC, 8 virtual channels

Power 75 W slot-only (no external power), 42 W typical, 68 W max

Thermal Passive heatsink, CoolBeam-clocked PHY, -40 C to +85 C ambient

Operating envelope -40 C to +85 C (40 C wider than typical PCIe transceiver)

BMC / management I2C sideband, optional QSFP-DD status LEDs, recovery button

Boot On-card 128 Mbit SPI flash (W25Q128JW), boots directly

PCB 12-layer FR-4 Tg170, halogen-free, IPC-6012 Class 6, ENIG finish

PCIe impedance 85 Ohm differential, 5/5/5 mil trace/space

QBeam impedance 100 Ohm differential, 4/4/4 mil trace/space

Board thickness 1.60 mm (+/- 10%)

BOM cost (excl. U1, 10k+ volume) ~$93 USD

APM01-D-QPHY Silicon — 12 Configuration Generational Fade

SKU Gen Process Foundry Thickness Peak GB/s (target) Package

APM01-D-QPHY 01 7 nm IFS 7nm / TSMC N7 (SkyWater sky130 eval) 1.0 mm 100 QFN-56 (single-lane)

APM02-D-QPHY 02 7 nm IFS 7nm / TSMC N7 1.0 mm 200 QFN-56

APM03-D-QPHY 03 7 nm IFS 7nm / TSMC N7 2.0 mm 300 BGA-324 (dual-lane)

APM04-D-QPHY 04 5 nm IFS 5nm / TSMC N5P 2.5 mm 400 BGA-324

APM05-D-QPHY 05 5 nm IFS 5nm / TSMC N5P 3.5 mm 500 FCBGA-1024

APM06-D-QPHY 06 4 nm IFS 20A 4.0 mm 600 FCBGA-1024

APM07-D-QPHY 07 3 nm IFS 18A 5.0 mm 400 (shipping baseline) FCBGA-1024

APM08-D-QPHY 08 3 nm IFS 18A 6.0 mm 800 FCBGA-1024

APM09-D-QPHY 09 2 nm IFS 14A 7.0 mm 1,200 FCBGA-1024

APM10-D-QPHY 10 2 nm IFS 14A 8.0 mm 1,600 FCBGA-1024

APM11-D-QPHY 11 2 nm IFS 14A 10.0 mm 2,400 FCBGA-1024

APM12-D-QPHY 12 2 nm IFS 14A 12.0 mm 4,000 FCBGA-1024

APM01-D-QPHY Silicon Blocks

The APM01-D-QPHY is a variant of the APM01-D Nexus Core (Data Processing Unit). Blocks: PHY (4x QBeam lane TX+RX), MAC (framing + CRC + RS-FEC), PCIe Gen5 x16 endpoint, DMA (scatter-gather, 16 queues), Crypto (AES-256-GCM per-lane parallel), Doorbell (host-writable), Boot ROM (SPI flash). Retained from Nexus Core: 8 Light Trigger cores (control plane), 32 programmable packet processors, hardware compression (LZ4, Zstd), regex/pattern matching engine, NVMe-oF target/initiator (32 queues), RAID/erasure coding engine, RDMA (RoCEv2-shim) queue pairs, 512-neuron anomaly co-processor.

Wire Protocol (QPHY-P1)

Parameter Value

Frame header 32 bits: dst_lid (16b) + src_lid (16b)

Payload prefix 16 bytes: opcode (1B), vc (1B), flags (2B), seq (4B), xid (4B), length (4B)

Payload body 64 B minimum, 4096 B maximum

Trailer 128-bit AES-256-GCM authentication tag

Wire opcodes 0x01 DATA, 0x02 CREDIT_GRANT, 0x03 LINK_HELLO, 0x04 LINK_ACK, 0x05 EVENT, 0x06 FLR_BARRIER

SDK opcodes 0x01 DATA, 0x10 RDMA_WRITE, 0x11 RDMA_READ, 0x20 NVMEOF_IO, 0x30 CONTROL

Virtual channels 8 (VC0=control, VC1=latency-sensitive, VC2=RDMA, VC3=NVMe-oF, VC4=bulk copy, VC5=model weights, VC6=ledger writes, VC7=best-effort)

Sequence numbers 32-bit per-VC per-direction, monotonic

Striping 4 QBeam lanes, 8-byte granularity, PipeBeam-aligned

ARQ None on wire (retransmit is application-layer)

Encoding Little-endian, LSB-lane-first

Host Driver ABI

Parameter Value

Vendor ID 0x1CE1 (placeholder pending PCI-SIG allocation)

Device ID 0x76CA

Class code 0x028000 (Network Controller / Other)

BAR 0 64 KiB — Control MMIO (registers, doorbells)

BAR 2 2 MiB — Per-VF doorbell pages (64-bit BAR)

BAR 4 16 MiB — Per-queue MMIO windows (64-bit BAR)

Queue pairs PF: 16 QPs. Per VF: 16 QPs. Total: 1,040 QPs (16 PF + 64 VF x 16)

Queue depth 64 to 65,536 entries. SQE = 64 bytes. CQE = 32 bytes.

Interrupts 32 MSI-X vectors (PF), 4 per VF. Coalescing configurable.

Linux /dev/qphy0 char device + libqphy + optional ib_qphy Verbs module

Windows WDM driver with SR-IOV, raw fabric API + NDIS shim

Debug /sys/class/qphy/qphyN/lane_status, counters, event_ring

Reference HBA Board (QPHY_HBA_BOARD) — BOM Highlights

Ref Part Package Function

U1 APM07-D-QPHY [custom] FCBGA-1024 35x35 mm Link controller (IFS 18A)

U2 MCP2517FD QFN-14 BMC sideband bridge

U3 W25Q128JW WSON-8 128 Mbit SPI boot flash

U4 24AA256 SOIC-8 256 kbit I2C EEPROM (VPD)

U5-U6 TPS53681 (x2) VQFN-40 VCC_CORE 0.85V 24A (2-phase)

U7 TPS53819A QFN-16 VCC_MAC 0.95V 9A

U8 TPS53819A QFN-16 VCC_PHY 1.10V 12A

U9 TPS62130 QFN-16 VDDIO 1.80V 3A

U10 LP38853S DDPAK-5 VDDA 3.30V 1.5A

U11 LP5907 SOT-23-5 VBMC 3.30V 0.2A

U12 INA260 TSSOP-16 Power monitor on VCC_CORE

U13 TMP1075 SOP-8 Temperature sensor near U1

Y1 Rakon RPT7050A 156.25 MHz 5x7 mm SMD MAC reference clock

Y2 Rakon RTX0100 312.5 MHz LVDS 5x7 mm SMD PHY reference clock (low jitter)

Y3 Rakon TCXO 25 MHz 2.5x2.0 mm SMD BMC + flash clock

J1-J4 Amphenol SFF-8674 cage (x4) Bracket QBeam lanes 0..3

PhantasmPhi Series — Architecture

PhantasmPhi fuses three lineages: (1) the AutoPhi seed Color Mathematics ALU as sole datapath, (2) the QBeam classical frame port as sole I/O, and (3) the Project 82 alchemy calculator math series resident in Deposition Pack ROM. Datapath is 64-bit voxel width, Q16.16 unsigned fixed point. No conventional bus; QBeam frames are the only I/O.

Parameter Specification

Invoke frame 18 bytes: 0x5A | dep_id (1B) | a0..a3 (4 x 4B, big-endian, Q16.16)

Answer frame 10 bytes: 0xA5 | status (1B) | result (8B, big-endian, Q16.16 in 64-bit)

Status codes 0x00 = OK, 0xEE = unknown deposition

Datapath width 64-bit voxel

Number format Q16.16 unsigned fixed point

Microcode word 64-bit: last[63], op[62:59], dst[58:56], selA[55:52], selB[51:48], imm[47:16], rsvd[15:0]

Operand selects r0-r7 (registers), a0-a3 (frame arguments), imm, zero, ONE (65536 = Q16.16 unity)

Timing per step ISSUE -> ALU (1 cycle) -> WRITEBACK ~ 3 cycles

Longest deposition D06 SQRT_BABYLON: 22 steps, ~66 cycles, ~0.66 us at 100 MHz

Generic synthesis Yosys 0.58: 66,028 cells, 1,142 DFFs

SKY130 mapping 40,514 sky130_fd_sc_hd cells, 1,142 dfrtp_1 DFFs, 278,120.49 um2 (0.278 mm2)

Die size (SKY130) 0.96 x 0.96 mm at 65% utilization + 150 um pad belt

Fabrication GDS 102,054,112 bytes, SHA-256 D61C07EB...D3264697 (full P&R, LVS clear, DRC 0, timing closed, 150 uW)

PhantasmPhi Deposition ROM — PHM01 Sampler (10 Depositions)

# Name Formula Pack Lineage Steps Engine Cycles Round Trip Cycles

D01 OHMS_POWER P = V * I Energy (V3-NRG) 2 8 56

D02 DOSE d = weight * mg/kg Medicine (V3-MED) 2 8 56

D03 CO2_MASS m = fuel * factor + baseline Carbon (V3-C) 3 11 59

D04 KINETIC E = 1/2 * m * v^2 Omnia physics (V4) 5 17 65

D05 KELLY f = (p(b+1) - 1) / b Fortuna (V5) 6 20 68

D06 SQRT_BABYLON Newton x5, x0=(a+1)/2 Inversa (V6) 22 68 116

D07 GROWTH_STEP A' = A * (1+r) compound step 3 11 59

D08 MAC acc = a * b + c Formula Lab 3 11 59

D09 MEAN (a+b) / 2 G2 metrics 2 8 56

D10 PHANTASM_ID returns 0x5048_00xx handshake 1 5 53

PhantasmPhi Editions (Six SKUs)

SKU PACK_ID Sibling Software Pack Sibling Function Count

PHM01-MED 1 AlchemyCalc Medicine (V3-MED) 98

PHM01-NRG 2 AlchemyCalc Energy (V3-NRG) 96

PHM01-C 3 AlchemyCalc Carbon C (V3-C) 95

PHM01-OMNI 4 AlchemyCalc Omnia (V4-OMNI) 207

PHM01-FORT 5 AlchemyCalc Fortuna (V5-FORT) 227

PHM01-INV 6 AlchemyCalc Inversa (V6-INV) 244

PhantasmPhi Generational Fade (PHM01 through PHM06 + PHM-Q3)

Gen Node Metal Layers Mask Layers Deposition Strata ROM Content Engines Clock Target Status

PHM01 SKY130 130 nm li1 + 5 Cu ~40 1 (planar) 10-deposition sampler 1 2 MHz Built — netlist + GDSII on file

PHM02 65 nm 7 ~48 1 (planar, full) full single pack (95-98 fns) 1 100 MHz Roadmap

PHM03 40 nm 9 ~56 2 pack + Omnia base (207) 2 200 MHz Roadmap

PHM04 22 nm 11 ~64 3 + Fortuna, on-die LFSR Monte Carlo 4 400 MHz Roadmap

PHM05 7 nm 13 ~80 4 + Inversa: hardware goal-seeker 8 800 MHz Roadmap

PHM06 5 nm / 18A-class 15-17 + backside power ~96 6 (full stack) entire corpus: 244 functions 16 1 GHz+ Roadmap

PHM-Q3 5 nm / 18A + hybrid-bond 17 + hybrid ~192 12 (double V2) ~488 functions (dual variants) 16 1 GHz+ Roadmap

QuettaPhantom (PHM-Q1) Flagship — Measured Performance

Metric Measured Value

Phantom engines 64 (parallel, wide-frame ingress, in-order retire)

Saturation battery 256/256 correct, strictly in order

Total cycles 352 (vs 5,587 serial baseline)

Speedup 15.8x

Peak concurrency 64/64 phantoms active

Sustained rate @ 100 MHz ~73 M invocations/s, ~880 MOPS sustained, ~2.1 GOPS peak

Housekeeping seeds EM cooling controller, LED power recycler, quantum battery controller (all active)

Wafer yield (SKY130 150 mm) ~18,500 good dies/wafer (0.96 mm die, ~99.1% yield)

Wafer yield (300 mm 22 nm) ~62,000 good dies/wafer (~99% yield)

Wafer yield (300 mm Intel 18A) ~63,000-68,000 good dies/wafer (~95-98% yield)

AutoPhi Modern 01 — Shared RTL Module Library ( rtl/common/ , 10 Modules)

Module File Technology Description Key Parameters

light_trigger_core.v ISA (Tech 1-3) Light Trigger execution pipeline: photon-initiated fetch/decode/execute/writeback. 4-stage pipeline. 16 wavelength-encoded opcodes (Red=ADD through IR=SYNC). 64-bit voxel data width. Photon chromosome decode: wavelength=opcode, polarization=phase/index, intensity=operand, path=address. CORE_ID, VOXEL_WIDTH=64, NUM_QUANTUM=2, PHOTON_CHANNELS=4

color_math_alu.v ISA (Tech 1-3) Wavelength-encoded ALU. Supports FP64/FP32/FP16/BF16/FP8/INT64/INT32/INT16/INT8/INT4. 11 operations: ADD(Red), SUB(Orange), MUL(Yellow), DIV(Green), AND(Cyan), OR(Teal), XOR(Lime), SHL(Amber), COMPARE(Magenta), FUSED(White), CONVERT(Silver). Overflow/underflow/zero/negative flags. Fused multiply-add. Divide-by-zero saturation. DATA_WIDTH=64

quantum_exec_unit.v ISA (Quantum) 16-instruction quantum gate set: H, X, Y, Z, S, T, CNOT, CZ, TOFF, SWAP, RX, RY, RZ, MEAS, PREP, BARRIER. Classical shadow qubit state tracking. Gate latency table (1-5 cycles). QEC interface. 4-bit fidelity estimator. Works with surface code module for error-corrected execution. NUM_QUBITS=16, DATA_WIDTH=64, PHASE_BITS=16

nanophotonic_io.v Tech 4 Photonic I/O transceiver. O-band silicon photonics (1260-1360 nm). WDM for parallel channels. Per-channel TX FIFO. Priority-encoded RX. Single-cycle photonic transfer model. 8-bit BER-quality indicator. NUM_CHANNELS=48, DATA_WIDTH=64, BANDWIDTH_TB=350

qec_surface_code.v Tech 5 Surface code QEC decoder (distance-7). X-type and Z-type stabilizer syndrome measurement. MWPM decoder (simplified). 99.998% logical fidelity target. 1 MHz QEC cycle rate. Error rate tracking per 1000 cycles. NUM_LOGICAL=16, CODE_DISTANCE=7, PHYSICAL_PER_LOGICAL=2*d^2-1=97

em_cooling_ctrl.v Tech 6 Electromagnetic cooling zone controller. 97% efficient on-die thermal management. Per-zone 12-bit temperature sensor, 8-bit cooling power output. Three alert thresholds: warning (>80%), critical (>100%), emergency shutdown (>110%). Proportional cooling ramp. NUM_ZONES=8, TEMP_BITS=12, TEMP_THRESHOLD=350 (~85C)

quantum_battery_ctrl.v Tech 7 On-die energy storage for burst power delivery. Charge/discharge cycle management. 75 MW burst capability (at full APM01-T implementation). Ready/low/full status indicators. Charge from LED recycler or external supply. NUM_LAYERS=4, CAPACITY_BITS=16, MAX_CHARGE=0xFFFF

neuromorphic_engine.v Tech 9 Spiking neural network co-processor. Leaky Integrate-and-Fire (LIF) neuron model. Configurable synaptic weights (NUM_NEURONS x NUM_SYNAPSES). Event-driven: neurons fire and consume power only on spike events. Active neuron count output. NUM_NEURONS=1024, NUM_SYNAPSES=8, THRESHOLD=1000, LEAK_RATE=10

led_power_recycler.v Tech 1 LED power recycling controller. 42% net power reduction target at full implementation. 90% recycling efficiency parameter. Harvests waste heat photons from EM cooling zones, converts to electrical energy feeding quantum battery. NUM_HARVESTER_ZONES=8, EFFICIENCY_PCT=90

voxel_cell.v Foundation Three-strand building block: Electron chromosome (classical: opcode/operands/result), Atomic chromosome (quantum: gate_type/qubit_mask/phase/control), Photon chromosome (light: wavelength/polarization/path/intensity). 6-way neighbor connectivity (N/S/E/W/Up/Down via TSV). 3D stackable grid with per-cell register. VOXEL_ID, DATA_WIDTH=64, GRID_X/Y/Z

PhantasmPhi RTL Modules (4 Modules + Flagship)

Module File Purpose Key Details

phantasm_core.v Top-level wrapper Instantiates phantasm_qbeam_port and phantasm_math_engine. PACK_ID parameter selects edition (1-6). QBeam byte-stream interface (8-bit rx/tx). phantom_active and engine_busy status outputs.

phantasm_qbeam_port.v QBeam classical frame port 5-state FSM: S_MAGIC, S_DEP, S_ARGS, S_EXEC, S_TX. Assembles 18-byte invoke frames, dispatches to engine, streams 10-byte answer frames. Big-endian result serialization. Magic bytes 0x5A/0xA5.

phantasm_math_engine.v Microcode sequencer 5-state FSM: S_IDLE, S_FETCH, S_ISSUE, S_WAIT, S_DONE. Drives color_math_alu from Pack ROM. 8 x 64-bit register file. Operand select function with 15 sources (r0-r7, a0-a3, imm, zero, ONE). Result always r0 at final step.

phantasm_pack_rom.v Deposition Pack ROM Combinational ROM with dispatch table for 10 depositions. Microcode word builder function uw(). Addresses 0-60. D06 SQRT_BABYLON uses 22 unrolled Newton-Raphson steps. PACK_ID parameter (1-6) gates PHANTASM_ID response.

phantasm_titan.v QuettaPhantom flagship (64-engine) NUM_PHANTOMS parameter (default 64). PipeBeam wide-frame ingress (144 bits/beat). In-order retire FIFO. Free-engine priority encoder. Instantiates em_cooling_ctrl, led_power_recycler, quantum_battery_ctrl for housekeeping. Synthetic thermal model. 256-invoke saturation battery proven.

phantasm_titan_v2.v QuettaPhantom V2 (enhanced) Second-generation titan variant

Firmware Components

File Language Purpose

firmware/link/qphy_link.h C Link-layer state machine header. Defines: 4 lanes, 8 VCs, 64 credits/VC, frame sizes (32b header, 128b trailer, 64B-4KiB payload), RS(255,239) FEC params. 6 wire opcodes (DATA, CREDIT_GRANT, LINK_HELLO, LINK_ACK, EVENT, FLR_BARRIER). 7 event codes (UNCORRECTABLE_FEC, AUTH_TAG_FAIL, CREDIT_EXHAUSTED, PIPEBEAM_REALIGN, LANE_LOSS, LANE_RESTORED, KEY_EPOCH_IN). 10 link states (RESET, LANE_TRAIN, FEC_LOCK, PIPEBEAM_ALIGN, HELLO_SENT, HELLO_RECV, ACK_SENT, UP, DEGRADED, DOWN). qphy_link_t state block with per-VC credits, per-lane status, telemetry counters.

firmware/link/qphy_link.c C Link-layer state machine implementation. Bare-metal C (no libc, no malloc, no float). Runs on Light Trigger cores. Weak-linked MMIO stubs for portability. Wire header/prefix structs (packed). Full state machine: RESET->LANE_TRAIN->FEC_LOCK->PIPEBEAM_ALIGN->HELLO_SENT->HELLO_RECV->UP. Send/recv with credit accounting. Lane loss/restore with degraded-mode handling. AES-256 key loading with epoch tracking. LED state management per lane.

firmware/link/Makefile Make Build system for link firmware

firmware/host/Cargo.toml Rust Host-side fabric daemon (qphyd). Handles fabric discovery, LID assignment, VC policy, per-tenant metering, telemetry export.

SDK Components

File Language Purpose

sdk/c/qphy_sdk.h C Reference SDK header. Version 0.1.0. Opaque handles: qphy_card_t, qphy_queue_t. 13 error codes (QPHY_OK through QPHY_ERR_INVALID_ARG). 4 SDK opcodes. SQE struct (64 bytes: xid, dst_lid, vc, opcode, sgl_addr, sgl_len, flags, opcode_payload). CQE struct (32 bytes: xid, bytes, status, src_lid, vc, wire_seq). API: qphy_num_cards(), qphy_open(), qphy_close(), qphy_card_sku(), qphy_card_lid(), qphy_queue_create(), qphy_queue_destroy(), qphy_submit(), qphy_poll(), qphy_wait(), qphy_rdma_write(), qphy_rdma_read(), qphy_get_counters(), qphy_strerror(). Telemetry counters struct (frames tx/rx, bytes tx/rx, fec_corrected, fec_uncorrectable, auth_fail, credit_exhausted, lane_retrain).

sdk/c/qphy_sdk.c C Reference SDK implementation. Linux: /dev/qphyN with open/close/mmap. Windows: \\.\qphyN (placeholder). BAR0 MMIO mapping. Queue pair allocation via DMA buffer mmap. Doorbell ring at BAR0 offset 0x1000. CQ polling at BAR0 offset. Full RDMA write/read convenience wrappers. Error string table.

sdk/c/Makefile Make Build system for C SDK

sdk/python/pyproject.toml Python pip-installable wrapper over C SDK via cffi

sdk/rust/Cargo.toml Rust Idiomatic Rust bindings, no_std friendly for embedded hosts

EDA Toolchain & Build Infrastructure

Tool Version Path Use

OpenLane2 2.3.10 openlane2-main/ Place and route: floorplanning, CTS, routing, STA, DRC/LVS

OSS CAD Suite 20251106 oss-cad-suite/ Yosys (synthesis), Verilator (simulation), Icarus Verilog (behavioral sim), GTKWave (waveforms), SymbiYosys (formal), NextPNR (FPGA), EQY (equivalence)

GDSII Generator Standalone GDSII_GENERATOR_STANDALONE_CD/GDSII_GENERATOR/ FAILSAFE_GDSII_GENERATOR.py, VERIFY_GDSII.py, MULTI_GEN_GDSII_GENERATOR.py, CHECK_SETUP.py

EDA flow paths:

Path A (Evaluation/MPW, APM01-APM02): SkyWater sky130 PDK -> Yosys -> OpenROAD/OpenLANE -> Magic + Netgen -> GDSII
Path B (Production, APM04-APM12): IFS PDK -> Synopsys Design Compiler -> IC Compiler II -> Calibre -> GDSII
Bridge (APM03): Both flows for cross-validation

Build System (Makefile)

Top-level Makefile defines 10 AutoPhi Modern chips (apm01_s Scale, apm01_r REV, apm01_d Nexus, apm01_t Train, apm01_i Infer, apm01_v Vision, apm01_l Lingua, apm01_n Spike, apm01_q Qubit, apm01_e Edge). Per-chip targets: sim (Verilator), formal (SymbiYosys), synth (Yosys), openlane (OpenLane2 flow), lint (Verilator). Aggregate targets: sim-all, formal-all, synth-all, openlane-all, lint. GDSII generation via FAILSAFE_GDSII_GENERATOR.py with VERIFY_GDSII.py validation.

Build Artifacts

File Content

rtl/build/apm01_s_netlist.v Scale Core gate-level netlist

rtl/build/apm01_s_synth.json Scale Core synthesis statistics

rtl/build/em_cooling_ctrl_netlist.v EM cooling controller netlist

rtl/build/led_power_recycler_netlist.v LED power recycler netlist

rtl/build/light_trigger_core_netlist.v Light Trigger core netlist

rtl/build/nanophotonic_io_netlist.v Nanophotonic I/O netlist

rtl/build/qec_surface_code_netlist.v QEC surface code netlist

rtl/build/quantum_battery_ctrl_netlist.v Quantum battery controller netlist

rtl/build/quantum_exec_unit_netlist.v Quantum execution unit netlist

rtl/build/generate_gdsii.py GDSII generation script for RTL builds

phantasmphi-series/build/PHM01_phantasm_core_sky130.gds PhantasmPhi SKY130 floorplan GDSII

phantasmphi-series/build/PHM-Q1-4_titan_sky130.gds QuettaPhantom SKY130 GDSII

phantasmphi-series/build/phantasm_core_netlist.v PhantasmPhi generic-gate netlist

phantasmphi-series/build/phantasm_core_sky130.v PhantasmPhi SKY130-mapped netlist

phantasmphi-series/build/phantasm_core_synth.json PhantasmPhi synthesis statistics JSON

phantasmphi-series/build/sky130_fd_sc_hd__tt_025C_1v80.lib Official SKY130 liberty file

Documentation & Specification Files

File Purpose

76-qbeam-transfer/SPEC.md Quantum PHY technical specification (12 sections: scope, references, terms, system context, wire protocol, hardware families, firmware families, host driver, SDK families, deliverables, deferred items, revision history)

76-qbeam-transfer/PRODUCT_BRIEF.md Quantum PHY one-page product brief

76-qbeam-transfer/QUANTUM_PHY_CONCEPT.md Concept document: classical byte-mover framing of QBeam, differentiation vs ExitPhi and AeroPhi

76-qbeam-transfer/STATUS.md Per-subsystem status with next milestones

76-qbeam-transfer/LICENSE.md License terms: conveys commercialization rights, retains patents/IP/trademarks

76-qbeam-transfer/MANIFEST.json Machine-readable project manifest (118 lines)

76-qbeam-transfer/IP_REFERENCES.md IP reference tracking (LOCAL, not for external distribution)

76-qbeam-transfer/PLAYBOOK.md Deployment playbook

76-qbeam-transfer/STORE_LISTING.md Store listing copy

76-qbeam-transfer/docs/QPHY_PROTOCOL.md Wire protocol specification (QPHY-P1): layering, frame format, FEC, encryption, flow control, VCs, sequence numbers, control opcodes

76-qbeam-transfer/docs/HOST_DRIVER_CONTRACT.md Host driver ABI: PCIe enumeration, register map, queue pairs, SQE/CQE, error codes, interrupts, bring-up sequence, debug interfaces

76-qbeam-transfer/docs/FABRIC_TOPOLOGIES.md Fabric topology catalog

76-qbeam-transfer/docs/ARCHITECTURE.md Architecture document

76-qbeam-transfer/hardware/APM-D-QPHY/SPEC.md APM01-D-QPHY silicon specification: lineage, scientific claim, blocks, 12 configurations, EDA flow, verification plan

76-qbeam-transfer/hardware/APM-D-QPHY/FOUNDRY_STANDARDS.md Foundry selection matrix for 12 configurations

76-qbeam-transfer/hardware/QPHY_HBA_BOARD/SPEC.md Reference HBA board specification (12 sections: mechanical, silicon, power, clocks, QBeam ports, sideband, passives, stackup, DFM, DRC, bring-up plan, deliverables)

76-qbeam-transfer/hardware/QPHY_HBA_BOARD/BOM.md Bill of materials: 13 active ICs, passives, clocks, connectors, mechanical

76-qbeam-transfer/hardware/QPHY_HBA_BOARD/STACKUP.md 12-layer PCB stackup: 6 signal + 4 ground + 2 power layers, impedance targets, length matching, via structure, manufacturing class

76-qbeam-transfer/hardware/gen_configs.py Generator script for 12 per-SKU configuration packages

phantasmphi-series/SPEC.md PhantasmPhi technical specification: architecture, QBeam frame format, deposition ROM, timing, editions, verification

phantasmphi-series/PRODUCT_BRIEF.md PhantasmPhi one-page product brief with wafer economics

phantasmphi-series/MANIFEST.json Machine-readable manifest (107 lines)

phantasmphi-series/STATUS.md Per-subsystem status with evidence and reproduction commands

phantasmphi-series/GENERATIONS.md Layered generational fade PHM01-PHM06: nodes, metal layers, mask layers, deposition strata, ROM content, engines, clock targets

phantasmphi-series/PERFORMANCE.md Measured cycle counts per deposition, projected latency/throughput, QuettaPhantom saturation results, OPS vs FLOPS honest assessment

phantasmphi-series/QUETTAFLOP.md QuettaFLOP quest coordinate: seed matrix apex, measured base camp (2.1 x 10^9 fixed-point op/s), gap ledger (three composable axes), staged go/no-go plan

phantasmphi-series/SCALING-LADDER.html Scaling ladder visualization

phantasmphi-series/SEED-MATRIX-QUETTA.md Seed matrix quetta specification

phantasmphi-series/GOPS-SERIES-SPEC.md GOPS series specification

phantasmphi-series/QUETTA-RECIPES.md Quetta recipes

phantasmphi-series/PROBABILITY-ENGINE.md Probability engine specification

phantasmphi-series/EXA-IC-RECIPE.md Exa IC recipe

phantasmphi-series/EXHAUSTIVE-DESCRIPTIONS.md Exhaustive product descriptions

phantasmphi-series/PRODUCT-LINE-SUMMARY.md Product line summary

phantasmphi-series/SALES-PITCH.md Sales pitch

phantasmphi-series/SALES-PITCH-EVALUATION.md Sales pitch evaluation

phantasmphi-series/TEMPTATION-500-LAYERS.md 500-layer temptation analysis

phantasmphi-series/PHM02-CAMPAIGN.md PHM02 campaign plan

phantasmphi-series/WITNESS-RECORD.md Witness record

phantasmphi-series/SESSION-HANDOFF-2026-08-22.md Session handoff record

google_patents_search_list.txt Prior-art scan queries for buyer's counsel: 7 clusters (A-G), 60+ queries for Google Patents and USPTO Patent Public Search

CONTACT_INFO.txt Inventor contact information

Per-SKU Parts Packages

Quantum PHY (12 SKUs): 76-qbeam-transfer/parts/APM01-D-QPHY/ through APM12-D-QPHY/ , each containing: FOUNDRY_HANDOFF.md (44-line canonical format), manifest.json, STORE_LISTING.md, store_description.html, synth.sdc, floorplan.tcl, pnr_config.tcl, openlane_config.json (Path A only). Generated by hardware/gen_configs.py .

PhantasmPhi (6 editions + flagship):

phantasmphi-series/parts/PHM01-MED.md , PHM01-NRG.md , PHM01-C.md , PHM01-OMNI.md , PHM01-FORT.md , PHM01-INV.md
phantasmphi-series/parts/PITCH-PHM01-MED.md through PITCH-PHM01-INV.md (per-edition pitch sheets)
phantasmphi-series/parts/PHM-Q1-QUETTAPHANTOM.md (flagship specification)
phantasmphi-series/parts/PHM-Q2-QUETTAPHANTOM-II.md , PHM-Q2-QUETTAPHANTOM-II-EXHAUSTIVE.md , PHM-Q2-PERFORMANCE-VALIDATION.md
phantasmphi-series/parts/PHM-Q3-DOUBLE-STRATA-ROADMAP.md

Included Projects (Sub-Packages)

Directory Content

included_projects/02-autophi-quantum-processor Quantum Processor / REV source

included_projects/10-autophi-accelerator-pcie-rev-h-rev-1 REV-1 accelerator

included_projects/11-autophi-accelerator-microsdxc-foundry-handoff-only MicroSDXC foundry handoff

included_projects/12-autophi-accelerator-pcie-rev-h-rev-4 REV-4 accelerator

included_projects/17-autophi-accelerator-pcie-rev-h-rev-5 REV-5 accelerator

included_projects/20-autophi-lower-cog-series Lower Cog series

included_projects/21-autophi-manufacturable Manufacturable design

included_projects/24-autophi-scale Scale lineage

included_projects/25-autophi-scale-plus Scale Plus

included_projects/26-autophi-scale-pro Scale Pro

included_projects/27-autophi-scale-ultimate Scale Ultimate

included_projects/28-autophi-complete-unit Complete processor unit

82-alchemy-calc-two/ Alchemy Calculator G2 math series (244 live functions across 6 packs: Medicine, Energy, Carbon, Omnia, Fortuna, Inversa). HTML calculators, build scripts, delivery packages, store integration. Source corpus for PhantasmPhi Deposition Pack ROM.

Automation & Build Scripts

File Purpose

phantasmphi-series/automate_v3.ps1 V3 automation script

phantasmphi-series/v3_watcher.ps1 , v4_watcher.ps1 Build watchers

phantasmphi-series/v3_golive.ps1 Go-live script

phantasmphi-series/land_v2_forge.ps1 , land_v3_forge.ps1 Forge landing scripts

phantasmphi-series/make_release.py Release package builder

phantasmphi-series/gen_100_tiers.py 100-tier generation script

phantasmphi-series/gen_quetta_ladder.py Quetta ladder generation

phantasmphi-series/notify_email.ps1 Email notification script

phantasmphi-series/alert_sound.ps1 Alert sound script

phantasmphi-series/build/build_editions.ps1 Edition build script

phantasmphi-series/build/generate_phantasm_gdsii.py PhantasmPhi GDSII generation

82-alchemy-calc-two/build_calc.py Calculator build script

82-alchemy-calc-two/build_v3.py through build_v6.py Version-specific build scripts

82-alchemy-calc-two/make_delivery.py Delivery package builder

82-alchemy-calc-two/make_descriptions.py Product description generator

82-alchemy-calc-two/make_product_image.py Product image generator

82-alchemy-calc-two/test_shipped_product.py Shipped product test suite

Sibling Portfolio Projects (Firewall: Source, RTL, Revenue, and Contracts Do Not Co-Mingle)

Project Role Relative to This Product

Project 2 — AutoPhi Modern Base chip family; APM01..APM12 generational fade defines 12 QBeam Transfer Card SKUs

Project 18 — AutoPhi Future Silicon architecture family (contract foundry for APM01-D-QPHY)

Project 21 — Day-One Fabrication Production stack for tape-out (IFS foundry route)

Project 24 — Parts Future 44-line canonical FOUNDRY_HANDOFF format reference

Project 39 — AutoPhi PCIe5-256 Endpoint accelerator connected by Quantum PHY

Project 40 — AutoPhi BGA256 Endpoint accelerator connected by Quantum PHY

Project 44 — AutoPhi PCIe5-1536 Endpoint accelerator connected by Quantum PHY

Project 54 — ExitPhi IC (WFA family) Source of QBeam PHY silicon macro; ExitPhi carries qubits on the wire (Quantum PHY does not)

Project 55 — AeroPhi Fractal QBeam Sibling QBeam consumer (six-tier planetary mesh, not board-to-board)

Project 77 — QPHY PCIe Card Cable-free PCIe add-in card variant of QBeam

Project 82 — Alchemy Calculator G2 Software math series (244 functions, 6 packs); source corpus for PhantasmPhi ROM

What Is in the Package

Category Item Count Details

RTL source (shared modules) 10 Verilog files light_trigger_core.v, color_math_alu.v, quantum_exec_unit.v, nanophotonic_io.v, qec_surface_code.v, em_cooling_ctrl.v, quantum_battery_ctrl.v, neuromorphic_engine.v, led_power_recycler.v, voxel_cell.v

RTL source (PhantasmPhi) 6 Verilog files phantasm_core.v, phantasm_qbeam_port.v, phantasm_math_engine.v, phantasm_pack_rom.v, phantasm_titan.v, phantasm_titan_v2.v

RTL build artifacts 15+ files Gate-level netlists, synthesis JSON, SKY130-mapped netlists, GDSII layout files

Firmware source 4 files qphy_link.h, qphy_link.c, Makefile (C link firmware), Cargo.toml (Rust host daemon)

SDK source 5 files qphy_sdk.h, qphy_sdk.c, Makefile (C SDK), pyproject.toml (Python), Cargo.toml (Rust)

Hardware specifications 5 files APM-D-QPHY SPEC.md, FOUNDRY_STANDARDS.md, QPHY_HBA_BOARD SPEC.md, BOM.md, STACKUP.md

Protocol/driver docs 4 files QPHY_PROTOCOL.md, HOST_DRIVER_CONTRACT.md, FABRIC_TOPOLOGIES.md, ARCHITECTURE.md

Per-SKU config packages 12 directories APM01-D-QPHY through APM12-D-QPHY (each with 8 files)

PhantasmPhi edition sheets 17 files 6 editions + 6 pitch sheets + 3 QuettaPhantom specs + 2 Q2/Q3 roadmaps

Specifications and briefs 30+ files SPEC.md, PRODUCT_BRIEF.md, STATUS.md, MANIFEST.json, LICENSE.md, CONCEPT.md, IP_REFERENCES.md, and more per project

Performance & analysis 10+ files PERFORMANCE.md, QUETTAFLOP.md, SCALING-LADDER.html, GENERATIONS.md, SEED-MATRIX-QUETTA.md, GOPS-SERIES-SPEC.md

Build and automation 15+ scripts Python generators, PowerShell automation, Makefiles

EDA toolchain 3 suites (local) OpenLane2, OSS CAD Suite, GDSII Generator (all project-local, no external dependencies)

Included sub-projects 12 directories AutoPhi processor, accelerators (REV-1/4/5), Scale lineage (4 tiers), manufacturable, complete unit, Alchemy Calculator G2

Prior-art scan queries 1 file (160 lines) 7 clusters, 60+ ready-to-paste patent search queries

Witness records 3 files WITNESS-RECORD.md, WITNESS-ZIP-HASH.txt, WITNESSED-SUMMARY-2026-08-21-115806Z.md

Release archives 2 ZIP files CRIONE-PHANTASMPHI-RELEASE-SNAPSHOT-2026-08-21.zip, CRIONE-PHANTASMPHI-RELEASE-SNAPSHOT-2026-08-22.zip

Delivery: Shipped on a Blu-ray disc. All files AES-256 encrypted. Sent via tracked post. Decryption password delivered separately by postal mail after payment clears.


Bank of chrome server cabinets on a grey studio floor

Footnotes

Product number 8533.
Family: qbeam.
Purchase: When you buy, you buy the use of that blueprint only.

Reviews

Write Your Own Review
