Description

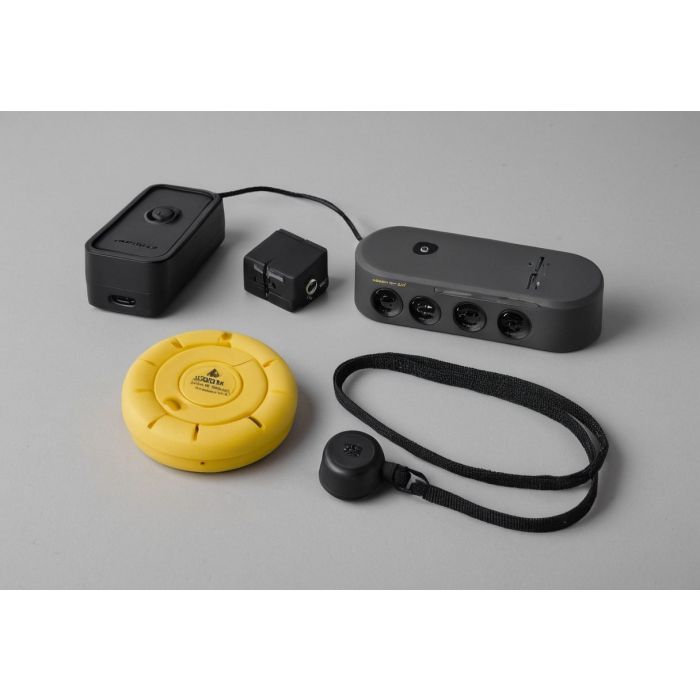

One Touch Microphone Pagers for Children and Adults — SKU 2034

Inventor & Licensor: Christopher Gabriel Brown, Lawrenceville, Georgia, USA. Status: Complete Design — Ready for Manufacturing, with full Satellite & Cellular Integration Heritage. Patent Posture: Method‑claim filings in preparation under Christopher Gabriel Brown’s active USPTO portfolio; thirty‑four (34) USPTO patent applications covering the satellite, phone, and encryption technologies embedded in this package are already filed as part of the NewStar cell‑heritage bundle. Patent pending — all rights to seek additional patent protection are expressly reserved by the inventor. All artefacts in this package are proprietary and confidential, copyright © 2026 Christopher Gabriel Brown, and are delivered under the LicenseRef‑Proprietary‑CGB grant recorded in the in‑tree LICENSE file.

Overview

The One Touch Microphone Pagers package is a complete, manufacturing‑ready product line of simple, durable, screen‑free voice‑pager devices for both children and adults, together with the paired base stations that anchor them and the full satellite and cellular heritage that gives them a documented evolution path from local RF communication to global, government‑grade encrypted voice.

The design paradigm is deliberately one button, one voice connection, no screen, no app, no camera, no internet, no cloud, no data storage — a child or adult presses a single large button, the microphone opens, and the voice is streamed to a paired parent, guardian, or workplace base station over the 902–928 MHz ISM band. When the button is released, the link closes; nothing is ever recorded on either end. The paradigm was inherited and simplified from the NewStar One‑Touch Satellite Phone (Project 20) and the NCS‑19 Communications Satellite (Project 19), both of which are delivered inside this package as heritage bundles, so the buyer receives not only the pager line but the underlying satellite‑grade communications platform from which it was derived.

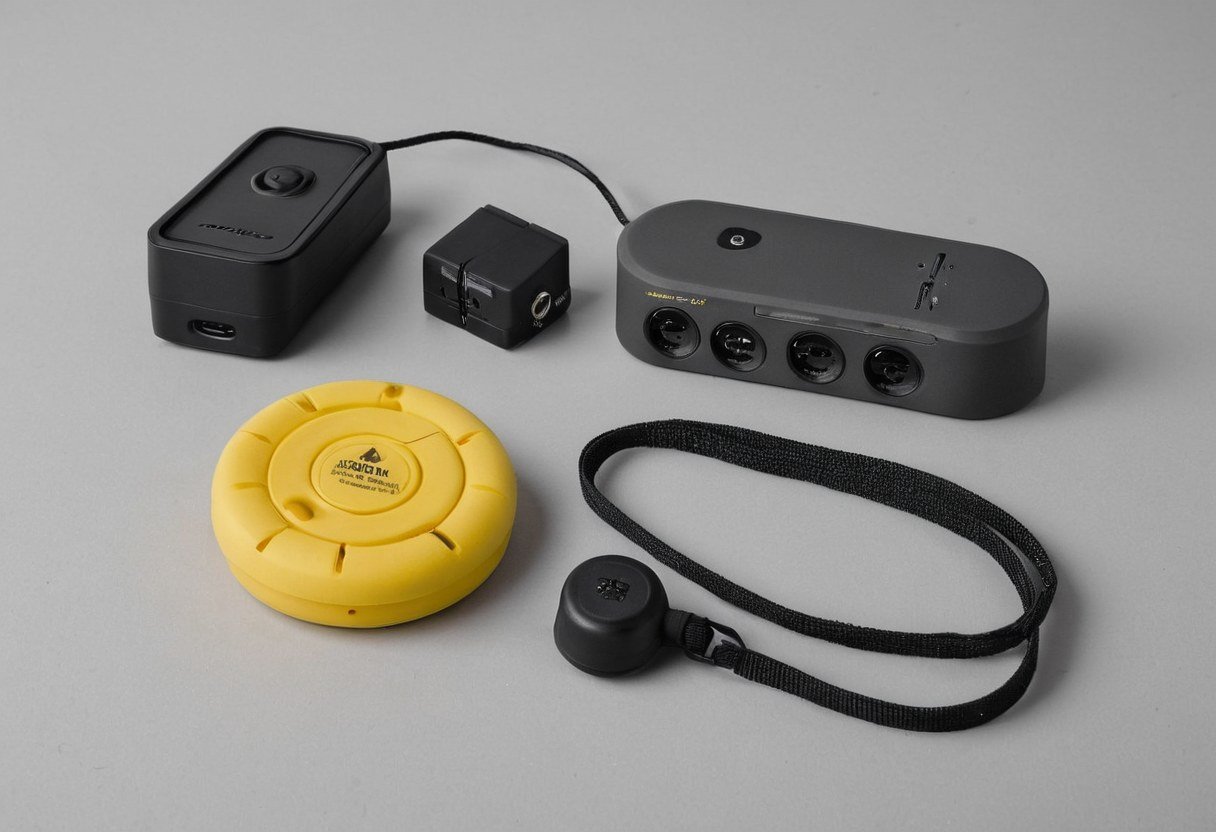

The line comprises three child devices ( PagerKid Mini , PagerKid Sport , PagerKid School ), three adult devices ( PagerOne Compact , PagerOne Pro , PagerOne Rugged ), and two base stations ( PagerHome Base , PagerHub Office ) — eight distinct SKUs sharing a common RF, audio, and pairing architecture — plus the complete NCS‑19 satellite heritage and NewStar cell heritage as forward‑compatible platforms.

Product Line at a Glance

SKU Audience Form Factor Attachment Key Differentiator

PagerKid Mini Ages 3–6 Rounded rectangle, 50 × 35 × 18 mm, 42 g Integrated silicone lanyard loop with break‑away clasp Extra‑large 25 mm dome button, bright silicone colours, no sharp edges

PagerKid Sport Ages 6–12 Oval slim profile, 55 × 30 × 14 mm, 38 g Spring‑loaded 360°‑rotating belt clip PC/TPU bumper, IP67 full submersion 1 m for 30 min

PagerKid School Ages 6–12, classroom Rounded rectangle, 52 × 32 × 12 mm, 35 g Lanyard slot + magnetic badge clip Quiet tactile click, silent vibrate alert, volume software‑limited to 70 dB

PagerOne Compact Adults, everyday carry Rounded rectangle, 65 × 38 × 12 mm, 52 g Removable belt clip + lanyard slot Aluminium frame, IP55 splash‑proof, 96 h standby, 10 h talk

PagerOne Pro Adults, workplace Badge‑style rectangle, 70 × 42 × 10 mm, 48 g Magnetic badge clip + lanyard + belt clip 4‑channel selector, strong haptic vibrate, side talk button

PagerOne Rugged Adults, field/industrial Rounded rectangle, 72 × 45 × 18 mm, 85 g MOLLE‑compatible clip + D‑ring + lanyard IP68 to 2 m for 60 min, MIL‑STD‑810H drop, −20 °C to +60 °C

PagerHome Base Household base station Truncated cone, 90 mm dia × 65 mm tall, 180 g Desktop weighted base Pairs up to 4 devices, distinct chime per slot, 4 h battery back‑up

PagerHub Office Workplace multi‑device hub Low‑profile rectangle, 120 × 80 × 35 mm, 280 g Desktop or wall‑mount (bracket included) Pairs up to 8 devices, 128 × 32 OLED, USB‑C PD

Design Philosophy — One Button, One Voice, Zero Exfiltration

The core paradigm is inherited, verbatim, from the NewStar satellite phone: one button, one contact, one voice channel. No text, no imagery, no location tracking, no cloud account, no analytics telemetry, no over‑the‑air software update path back to a server. The satellite phone’s encrypted‑link architecture has been scaled down from satellite‑grade to local RF while preserving the same no‑data‑storage, no‑cloud, zero‑exfiltration principles. Nothing that a child says on a PagerKid, or that an adult says on a PagerOne, is ever recorded on either device or leaves the local RF link.

Modulation GFSK (frequency‑hopping spread spectrum, FCC Part 15.247) GFSK (frequency‑hopping spread spectrum, FCC Part 15.247)

Transceiver Texas Instruments CC1101 sub‑GHz transceiver Texas Instruments CC1101 + CC1190 range‑extender PA

RF framing 80‑sample (5 ms) frames, 40 B ADPCM + 4 B header + 2 B CRC, 200 frames/s, 9.2 kbps aggregate; on CRC failure, repeat last frame (max 2 consecutive)

Pairing Hold‑to‑pair (10 s device, 5 s base), 32‑bit nonce broadcast, 64‑bit pairing key exchange, range‑limited to 10 ft, XOR scramble on the live link, zero cloud dependency

Firmware states SLEEP (STOP mode, RF asleep, ~5 µA), CALLING (button pressed, amber LED blink), CONNECTED (audio streaming, green LED), LOW_BATTERY (red LED blink every 30 s, audio alert on connect), PAIRING (10 s hold, rapid blink)

Audio pipeline PDM microphone → 16 kHz PCM → ADPCM 32 kbps encode → RF TX; RF RX → ADPCM decode → DAC → speaker

Charger IC MCP73831 with thermal regulation, 500 mA charge (1.6 h to full), 4.2 V voltage‑based termination with timer back‑up

PCB 30 × 45 mm, 2‑layer FR4, 1.0 mm, Tg 170 °C, ENIG finish; 47 components; est. unit cost US $12.50

Safety design No GPS tracking, no data storage, no hot‑mic, no user‑replaceable battery, PTC fuse on pack, thermal cut‑off at 60 °C, tool‑required battery compartment

Colour options Sky Blue (Pantone 2905 C, #87CEEB), Coral Pink (Pantone 16‑1546, #FF6F61), Lime Green (Pantone 368 C, #32CD32), Sunshine Yellow (Pantone 116 C, #FFD700)

Colour options Charcoal/Red (Pantone 432 C, #36454F), Navy/Neon Green (Pantone 289 C, #1B3A5C), White/Electric Blue

Colour options Slate Gray (Pantone 7544 C, #708090), Forest Green, Navy Blue (Pantone 289 C, #1B3A5C) — muted palette

MCU STM32L476RG, ARM Cortex‑M4, running FreeRTOS with four tasks: RF_Task (continuous RX for up to 4 paired children), Audio_Task (streaming, codec control, volume), UI_Task (LEDs, buttons, chime playback), Power_Task (wall/battery switchover)

RF CC1101 + CC1190 PA delivering +24 dBm; internal PCB antenna or rear SMA for external whip

Form / materials Truncated cone, 90 mm dia × 65 mm tall, weighted no‑tip ABS base, matte white or matte charcoal

Weight 180 g

Controls 4 colour‑coded child‑select buttons + talk + volume; 4 slot LEDs + signal‑strength bar; optional LCD segment display

Pairing slots 4, each with unique ID and distinct chime (Slot 1 C5–E5 two‑tone ascending, Slot 2 C5–E5–G5 three‑tone, Slot 3 G5–E5 two‑tone descending, Slot 4 single A5); auto‑answer configurable per slot; first‑come queuing when busy

Power 12 V/1 A UL‑listed barrel jack (rear) + USB‑C auxiliary; LP704060 2000 mAh LiPo back‑up (~4 h)

PCB 60 × 80 mm, 4‑layer FR4 (signal / GND / power / signal), 1.6 mm, ENIG; 62 components; est. unit cost US $18.75

• PagerHome enters pairing mode: hold the PAIR button for 5 s.
• PagerKid enters pairing mode: hold its single button for 10 s.
• PagerHome broadcasts a pairing beacon carrying a random 32‑bit nonce.
• PagerKid receives the beacon and generates a 64‑bit pairing key.
• PagerKid sends the pairing request encrypted with the nonce.
• PagerHome stores the key in a free slot and returns an ACK with the slot number.
• Both devices retain the pairing key; future comms use it for XOR scramble on the live link.

Pairing is range‑limited to about 10 ft, preventing hostile pairing at a distance. No audio is ever stored on either endpoint, no cloud or internet is required at any step, and there is no data‑exfiltration vector. This is the same no‑exfiltration philosophy as the NewStar satellite phone, adapted for local RF and child‑device battery constraints.

FCC Part 15.247 FHSS in 902–928 MHz ISM, ≥ 50 hopping channels, ≤ 400 ms dwell, spurious per 15.209, FCC ID label per 2.925; design uses 100 mW/250 mW — well under the 1 W (+30 dBm) cap Test matrix (conducted & radiated emissions, frequency stability, occupied bandwidth, power spectral density, spurious emissions); certification cost estimate US $8,000–$12,000 per variant

CPSIA §101 lead Third‑party CPSC‑accepted lab test plan (lead, phthalates — DEHP, DBP, BBP, DINP, DIBP, DPENP, DHEXP, DCHP; small parts; sharp edges; battery compartment); Children’s Product Certificate template

SAR FCC 1.6 W/kg over 1 g; body‑worn PagerKid requires test; expected 20 cm, exempt IEEE 1528 / IEC 62209 test plan, head & body configurations, US $5,000–$8,000 estimate

Battery safety UL 2054 (household batteries), UN 38.3 (lithium transport), IEC 62133 (portable secondary lithium) Protection circuit (overcharge, over‑discharge, short), PTC fuse, thermal cut‑off 60 °C, tool‑secured (Phillips #0) sealed pack, MCP73831 thermal‑regulated charge, 4.2 V voltage‑based termination with timer back‑up

• Simple communication devices for children and adults: US $4.8 billion market, 14 % CAGR.
• Screen‑free alternatives for parents; simple, reliable voice devices for adults.
• No dominant player in simple one‑touch voice‑only for any age.
• Satellite‑connected personal communication: US $12 billion+ addressable market when the NCS‑19 integration path is exercised.
• Revenue trajectory (from the investor deck): Year 1 US $3‑8 M direct‑to‑consumer and Amazon; Year 2 US $15‑30 M expanded retail (Target, Walmart, Best Buy); Year 3 US $40‑70 M national + international; satellite‑connected variants an additional US $50‑200 M at premium pricing.

NCS‑19 Communications Satellite Heritage (Project 19, bundled in satellite‑heritage/ )

This package includes the complete NCS‑19 satellite system design — a quantum‑battery‑powered communications satellite platform with AES‑256‑GCM encryption, quantum key distribution (QKD), phased‑array antennas with beam hopping, and inter‑satellite laser crosslinks — providing the orbital infrastructure and protocol foundation that a future satellite‑connected PagerKid or PagerOne can evolve to interface with for effectively unlimited range.

• Interface Control Document ( ICD_NCS‑19‑001.md ).
• CAN bus data byte specification with 19 CAN IDs and full byte layouts ( DATA_BUS_BYTE_SPEC_DETAILED.md ).
• Connector and cable specification for J1–J12 ( CONNECTOR_AND_CABLE_SPEC_DETAILED.md ).
• Power/mass budgets and environmental limits ( REAL_SPECS.md ).
• Modern satellite design elements ( MODERN_SATELLITE_DESIGN_ELEMENTS.md ).
• Requirements list, traceability matrix, qualification summary, detailed test procedures, assembly detail with torque specifications, risk register.
• Production‑ready flight software: obc_message_defs.py CAN‑bus message definitions.
• 8 service types (Government/Military/Public encrypted, broadband, broadcast, IoT, emergency, blockchain).
• 6 encryption modes (AES‑128‑GCM, AES‑256‑GCM, QKD + AES‑256, fractional, timeline).
• Engineering drawings, wiring diagrams, SVG diagrams.
• OpenSCAD 3D‑printable satellite models ( comm_satellite_assembly.scad , war_satellite_assembly_HERITAGE.scad ).
• 70+ blueprint documents (executive presentations, design packages, government proposals).
• Patent landscape research, quantum battery comparison, expired/free technologies survey.
• USPTO patent‑filing receipts (including ESSENTIAL_FORMS/buyinvent26_FEE_TRANSMITTAL_filled.pdf , buyinvent26_PTOAIA34_filled.pdf , buyinvent26_PTOSB01_filled.pdf , buyinvent26_PTOSB16_filled.pdf ).

NewStar One‑Touch Satellite Phone Heritage (Project 20, bundled in cell‑heritage/ )

This package includes the complete NewStar tri‑mode satellite phone design — a Windows‑based phone with direct NCS‑19 satellite connectivity and School / Business / Play tri‑mode operation — whose one‑touch paradigm and tested firmware stack directly seed the pager pairing, codec, and connection logic and provide a documented path for evolving the pager line into cellular and satellite variants with government‑grade encryption.

• Phone specification sheet with the tri‑mode system architecture.
• Feature requirements document (School / Business / Play).
• Business plan with market opportunity and revenue projections.
• 80+ phone‑relevant inventions extracted and catalogued.
• Hardware specification: ARM64 SoC, 5G/LTE, satellite L‑band, 6000‑7000 mAh battery.
• NCS‑19 phone interface specification — one‑touch satellite connection flow with GPS lock + beam acquire + encrypt in under 6 seconds.
• Project status and firmware test report.
• Investor handoff, valuation data sheet, 8‑phase production roadmap.
• Tested firmware, delivered as source Python:
• ncs19_codec.py — CAN‑message codec, byte‑exact to the NCS‑19 spec (12/12 tests pass).
• connection_fsm.py — 10‑state connection state machine (all transitions verified).
• crypto_pipeline.py — AES‑128/256‑GCM, QKD + AES‑256, fractional, timeline encryption (21/21 tests pass, real cryptographic operations).
• ncs19_simulator.py — satellite behaviour simulator.
• test_full_stack.py — 63 passing integration tests.
• Interactive browser‑based UI prototype ( prototype/index.html ).
• Patent portfolio tracker ( tools/patent_tracker.html ).
• Google Patents search list for the 34 NewStar/NCS‑19 USPTO applications.

Intellectual Property Position

• Proprietary one‑touch communication protocol derived from the NewStar satellite‑phone architecture.
• Secure pairing protocol adapted from the satellite‑grade encrypted link design.
• Industrial designs for PagerKid Mini, Sport, and School.
• Industrial designs for PagerOne Compact, Pro, and Rugged.
• Industrial designs for PagerHome Base and PagerHub Office.
• NCS‑19 satellite communication protocol and CAN bus message definitions.
• NewStar tri‑mode phone firmware (codec, FSM, crypto pipeline).
• 34+ USPTO patent applications covering the satellite, phone, and encryption technologies.
• Brand names: PagerKid, PagerOne, PagerHome, PagerHub, NewStar, NCS‑19.
• All artefacts are copyright © 2026 Christopher Gabriel Brown; licence reference LicenseRef‑Proprietary‑CGB. Patent pending; the licensor retains all rights to prosecute additional patent protection.

What Is in the Package

The disc carries the complete 07-one-touch-pagers/ source tree — a 149‑file deliverable comprising 123 documentation files, 7 source‑code files, 6 web files, 4 PDFs, 3 JSON data files, 2 OpenSCAD CAD models, 1 SVG hero graphic, and supporting text, with .md (115), .txt (8), .py (7), .html (6), .pdf (4), .json (3), .scad (2), .svg (1) extensions. Concretely:

• Root manifest and provenance — README.md , MANIFEST.json , CITATION.cff , CHANGELOG.md , CONTACT_INFO.txt , LICENSE (LicenseRef‑Proprietary‑CGB), HANDOFF_BLURB.md , PLAYBOOK.md , WEB_DESCRIPTION.html , 07-one-touch-pagers-hero.svg .
• hardware/ — pagerkid_schematic.md , pagerkid_bom.json , pagerhome_schematic.md , pagerhome_bom.json , pagerone_bom.json , antenna_spec.md , pcb_stackup.md , rf_link_budget.md .
• firmware/ — pagerkid_firmware_spec.md , pagerhome_firmware_spec.md , pairing_protocol.md , audio_codec_spec.md .
• industrial-design/ — pagerkid_mini_spec.md , pagerkid_sport_spec.md , pagerkid_school_spec.md , pagerone_compact_spec.md , pagerone_pro_spec.md , pagerone_rugged_spec.md , pagerhome_base_spec.md , pagerhub_office_spec.md , color_material_finish.md .
• safety/ — fcc_compliance.md , cpsia_compliance.md , sar_testing.md , battery_safety.md .
• sales-pitches/ — investor_deck.md , one-touch-pagers26_PRODUCT_CARD.md , one-touch-pagers26_STORE_PRODUCT_DESCRIPTION.html , one-touch-pagers26_VAULT_DELIVERY_INSTRUCTIONS.html .
• handoffs/ — HANDOFF_CHECKLIST.md (every hardware, firmware, industrial‑design, regulatory, satellite‑heritage, and cell‑heritage item ticked off).
• satellite-heritage/ — complete NCS‑19 system: NCS19_README.md , NCS19_HANDOFF_BLURB.md , PATENT_LANDSCAPE_RESEARCH.md , QUANTUM_BATTERY_COMPARISON.md , EXPIRED_AND_FREE_TECHNOLOGIES.md , README_SPECS_AND_SOFTWARE.md ; specs/ (ICD, CAN‑bus byte spec, connectors J1–J12, real specs, modern design elements, requirements & traceability, qualification, detailed test procedures, assembly detail, risk register); software/ ( obc_message_defs.py , SOFTWARE_SPEC_MAPPING.md ); drawings/ ; blueprints/ (70+ documents); 3d_print/ ( comm_satellite_assembly.scad , war_satellite_assembly_HERITAGE.scad ); sales-pitches/ ; patent-receipts/ ; scripts/ .
• cell-heritage/ — complete NewStar phone: NEWSTAR_README.md , NEWSTAR_HANDOFF_BLURB.md , CONTACT_INFO.txt , google_patents_search_list.txt ; docs/01_PHONE_SPEC_SHEET.md through 10_VALUATION_DATA_SHEET.md plus ROADMAP.md ; firmware/ ( ncs19_codec.py , connection_fsm.py , crypto_pipeline.py , ncs19_simulator.py , test_full_stack.py ); prototype/index.html ; tools/patent_tracker.html .

A SHA‑256 manifest is included on the disc for integrity verification. The deliverable is complete and ready for contract electronics manufacturing, retail distribution, and satellite‑integration development.

How this is delivered

This package ships on a single Blu-ray disc, posted to the delivery address on your order. The archive on the disc is AES-256 encrypted; the passphrase is sent separately, by email, once the disc is despatched — so the disc alone is of no use to anyone who intercepts it.

Discs are despatched by tracked, signed-for post. Allow 5 business days for mastering and verification before despatch.
